Description
IVORY INGROUND SERIES – WALK WAY
Deep-recessed, glare-free inground lighting engineered for premium outdoor walkways.
Product Overview

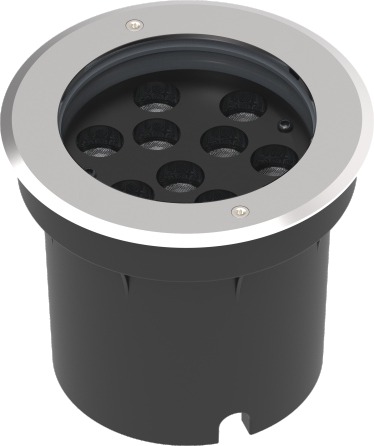

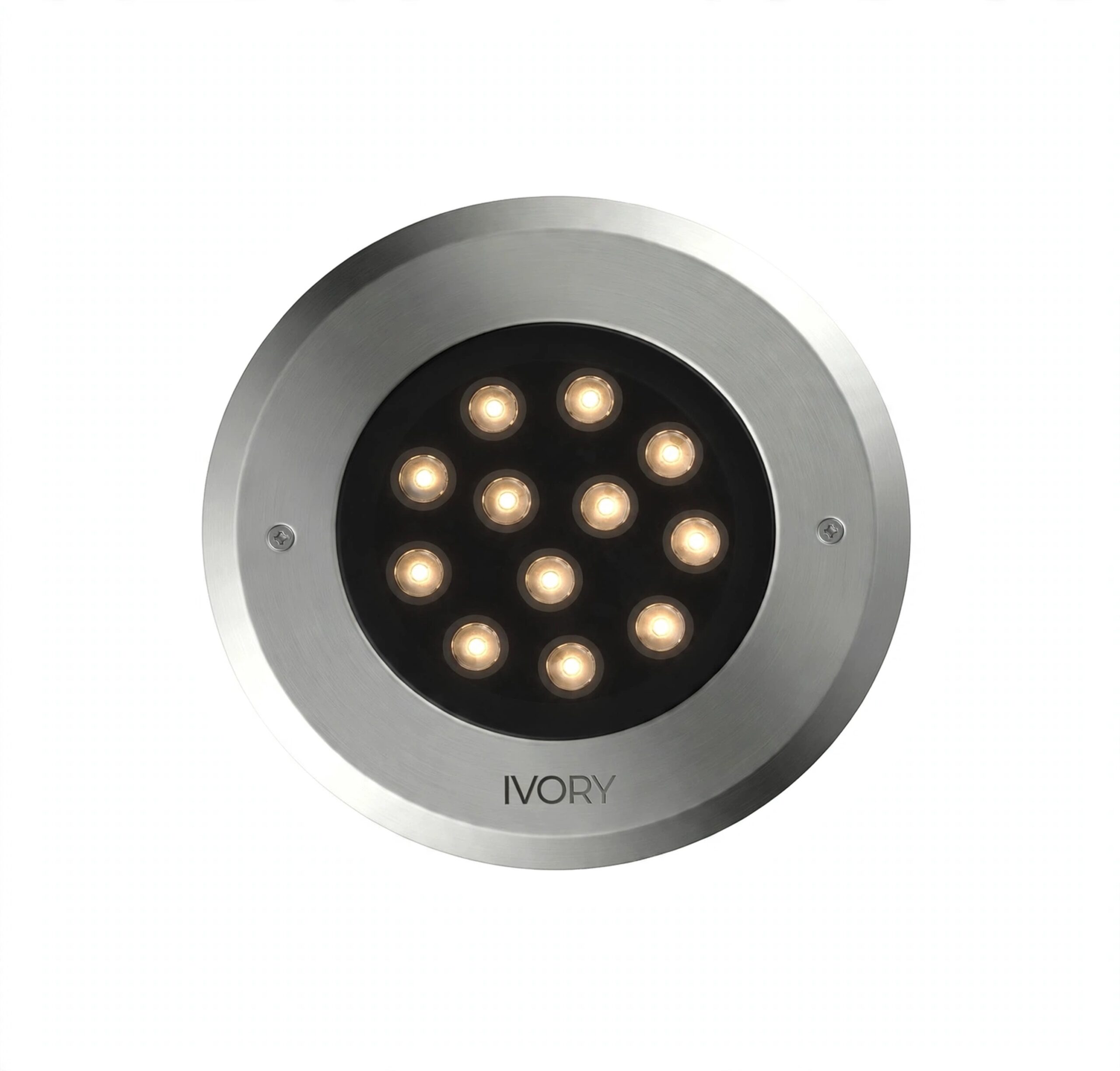

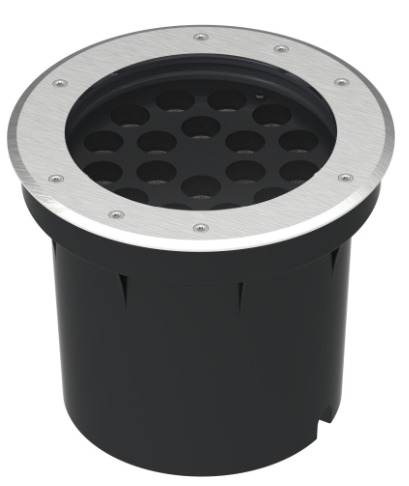

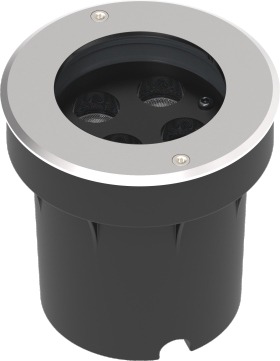

The Ivory Walk Way is a professional-grade recessed inground luminaire designed on the principle of Deep-Light Emission. By setting the light source deep within the body and integrating a honeycomb anti-glare louver, it delivers powerful illumination without discomfort glare at close range — even when viewed from directly above. This makes it ideal for pedestrian-centric spaces where visual comfort is critical.
Built for harsh outdoor environments, it combines architectural aesthetics with industrial-grade protection.
Key Features & Technology
1. True Visual Comfort – No Glare Design
Deep light cavity + built-in anti-glare honeycomb net. The light is perceived, not the source. UGR <19. Perfect for walkways where pedestrians walk directly over or beside the fixtures.
2. Extreme Durability – Built to Last Outdoors
- Body: Thickened die-cast aluminum, one-piece molding
- Bezel: 304 stainless steel face cover – anti-rust, anti-corrosion
- Glass: 8mm super-thick tempered glass, IK08 impact rated, load-bearing >2000kg
- Finish: Outdoor-grade electrostatic powder spraying
- Waterproofing: Structural waterproofing – No glue filling process. Mechanical sealing for long-term reliability. Protection Grade: IP67
3. Professional Optics
- Light Source: Imported CREE / OSRAM LEDs – High CRI >90 Ra, excellent color consistency, 50,000H+ lifespan
- Optics: High-permeability, flame-retardant optical lens for precise beam control
- Beams Available: 15° / 30° / 45° / 60° / Wall Washer (Customized)
4. Intelligent Control
- Driver: Branded isolated power supply with excellent EMC – no electromagnetic interference
- Versions:
- Monochrome (3000K / 4000K / 6000K)
- RGBW 4-in-1 Full Color
- Control System: Supports DMX512 for dynamic full-color control and scene programming
1. Applications – Where to Use
A. Primary – Walk Way Guidance [All Wattages]
The main purpose. The deep recessed + honeycomb makes it comfortable to walk directly over. No glare even for children. Use 9W for residential, 18W/24W for hotel and commercial walkways.

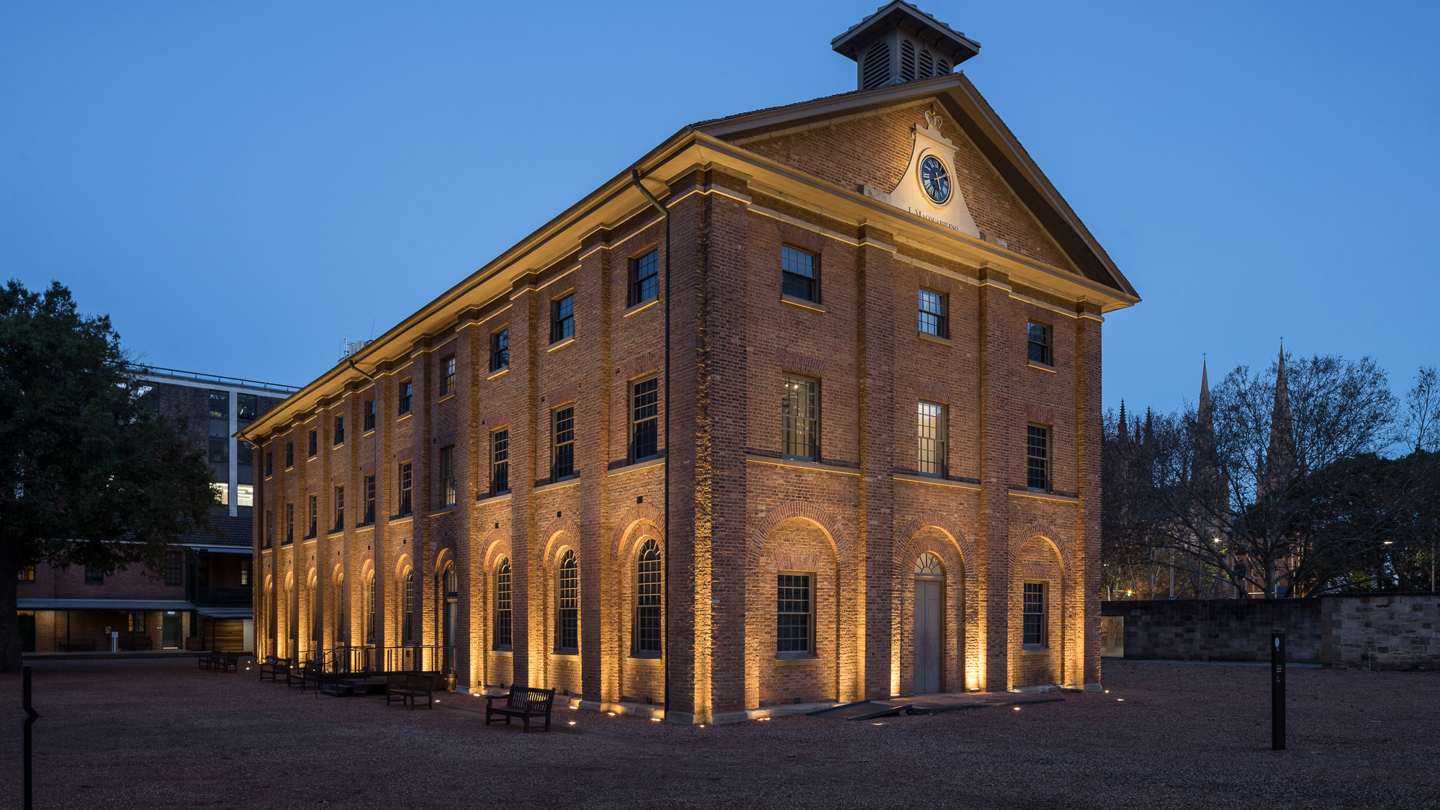

B. Facade & Column Grazing [24W / 36W]
15° and 30° beams to graze stone walls, architectural columns, and textured walls from the ground up. The 36W version provides enough throw for up to 6-8m height.

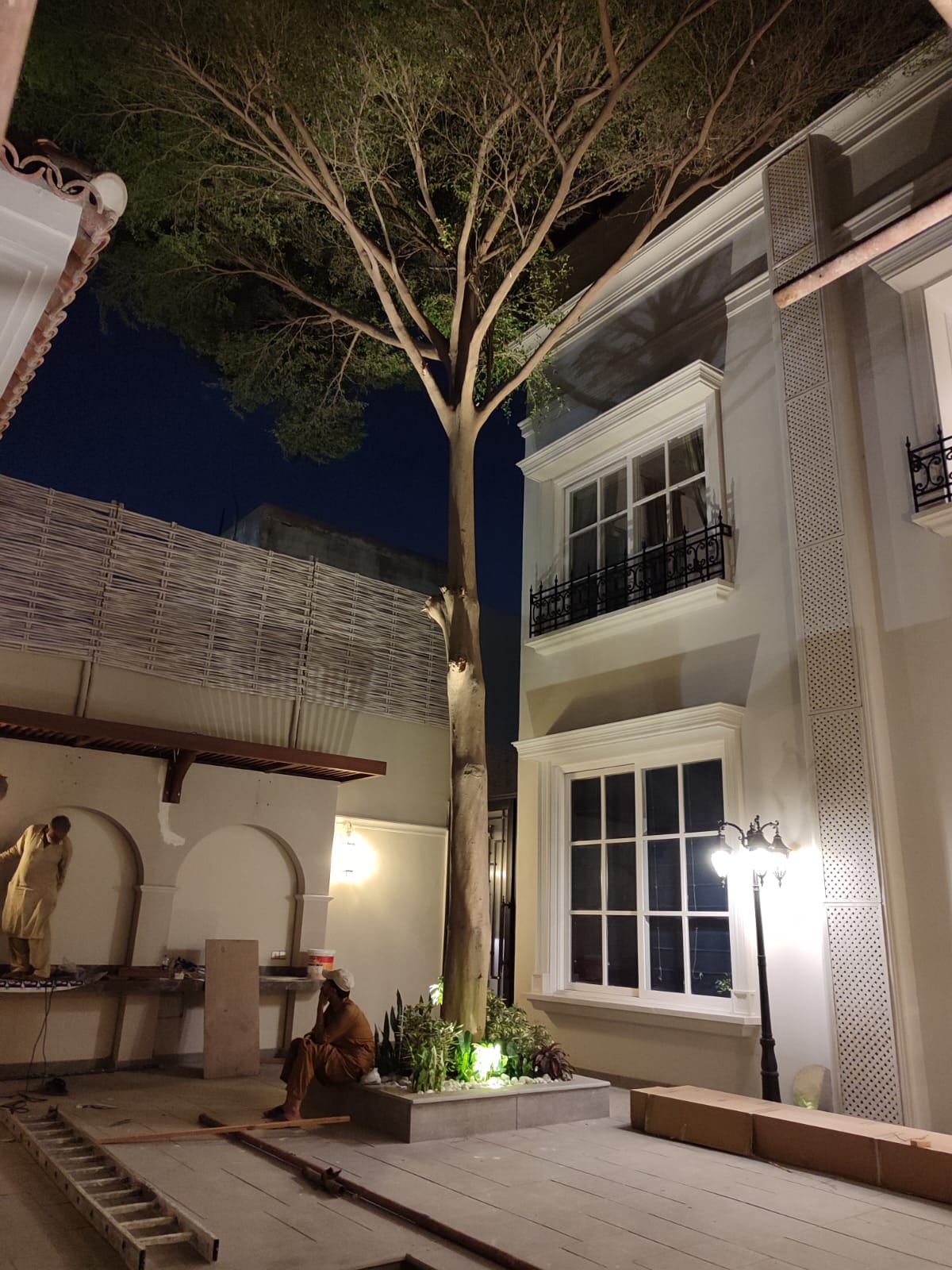

C. Landscape & Tree Uplighting
Installed at base of trees, sculptures, or landscape features. Structural IP67 ensures it survives watering and rain.
D. Hospitality & Commercial Plazas
Entrances of shopping malls, 5-star hotel driveways, villa courtyards, and luxury residential complexes. The 304 SS cover maintains premium look even after years in harsh Karachi coastal weather.
2. Photometric Capability
Based on your photometric view, the series supports full beam control:
- Narrow: 15° – For dramatic accent, tree trunk grazing, column highlighting
- Medium: 30° / 45° – For general walkway guidance and facade washing
- Wide: 60° – For soft, wide path illumination
- Asymmetric Wall Wash: 20°x40° and 10°x60° – Specially designed for walkway wall-washer effect, uniform light along walls without hot spots
