Description
Erde Mini is a compact, high-performance inground uplight designed for precise architectural accent lighting. Despite its small 45mm size, it delivers a powerful, clean beam with hospitality-grade color quality. Built with marine-grade 304 stainless steel and IP67 protection, it is engineered for Pakistan’s outdoor conditions.
IVORY ERDE MINI – 1W & 3W | Mini Inground Uplight
AC 220V & DC 12/24V | 10° 15° 24° | 2700K – 3000K | CRI 90+
Product Overview:
Ivory Erde Mini is a mini architectural inground uplight in a compact 45mm body. Designed for projects where the fixture must disappear and only the light is seen. Available in 1W (Marker) and 3W (Accent) with both 220VAC Direct and 12/24V DC Safe Voltage options, it covers every application from a simple step light to a premium facade uplight.
Built with 304 Stainless Steel bezel and IP67 Walkover body, it is made for outdoor use in Pakistan – anti-rust, dust-tight, and drivable.
Technical Specifications:
- Model: Erde Mini 1W / Erde Mini 3W
- Wattage: 1W (80-90lm) | 3W (240-270lm)
- Voltage: 220VAC Direct (Built-in Driver) OR 12V DC / 24V DC (External Driver Required)
- Beam Angle: 10° | 15° | 24° (Precision Narrow)
- CCT: 2700K Extra Warm / 3000K Warm White
- CRI: 90+ High Color Rendering
- Material: 316 Marine-Grade Stainless Steel + Anti-Corrosion Body
- IP Rating: IP67 – Walkover Rated
- Cutout: 45-50mm Dia, Height ∼65mm
- Lifespan: 50,000 Hours
Key Features:
1. Two Power Options: 1W for subtle guidance, 3W for powerful accent – same small cutout.
2. Two Voltage Options: 220VAC for easy direct installation without driver box, 12/24V DC for safe low-voltage installation near pools, gardens, and touchable areas.
3. Professional Optics: 10° sharp spot for tall columns, 15° for trees and facade, 24° for steps and walls.
4. Hospitality Light Quality: CRI 90+ makes stone, wood, and plants look natural. 2700K for luxury warm feel, 3000K for clean modern feel.
Application Uses:
For 1W Version (The Marker Light):

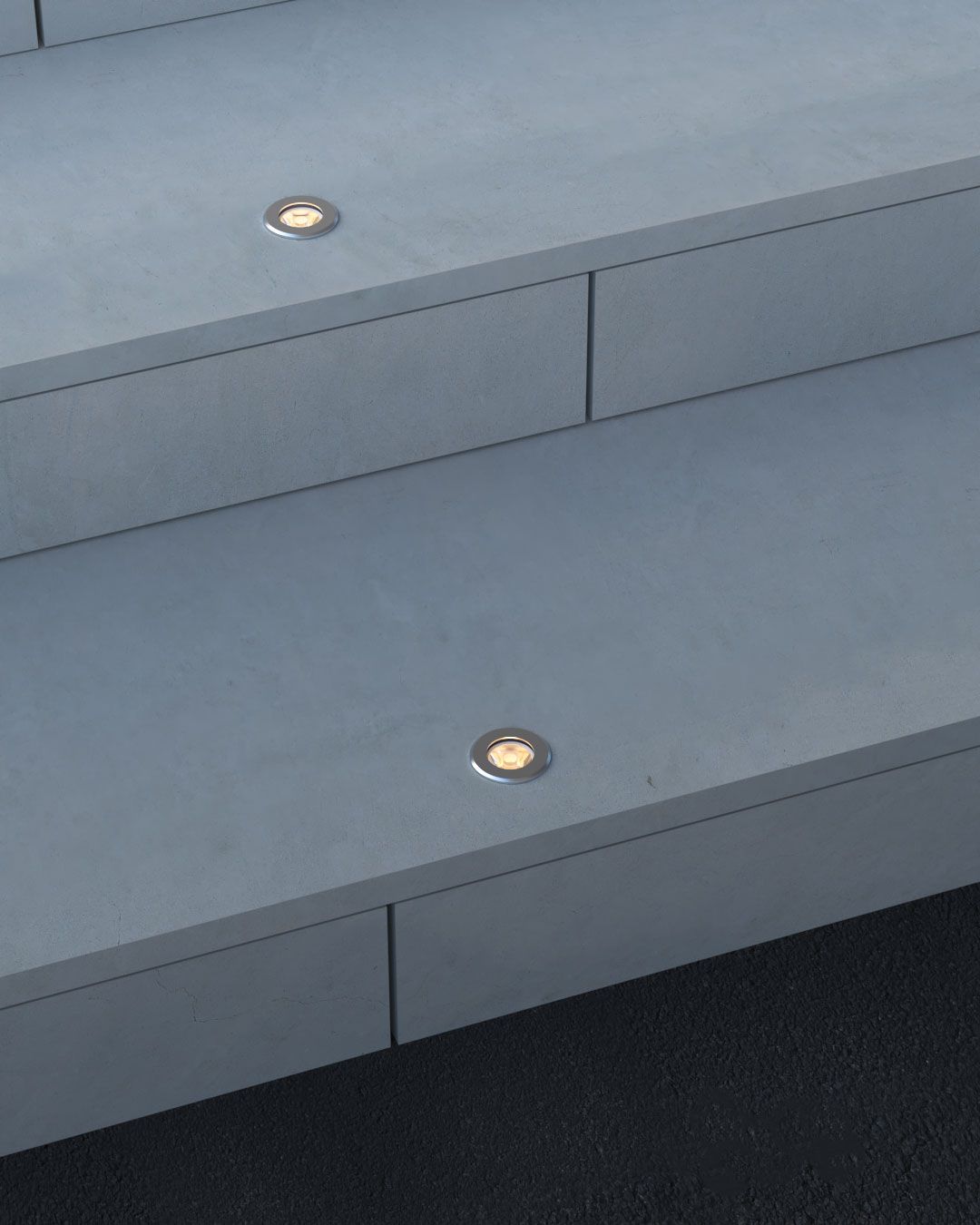

- Stair & Step Lighting: Install in every 2nd stair riser for glare-free night guidance in villas, theaters, and terraces.

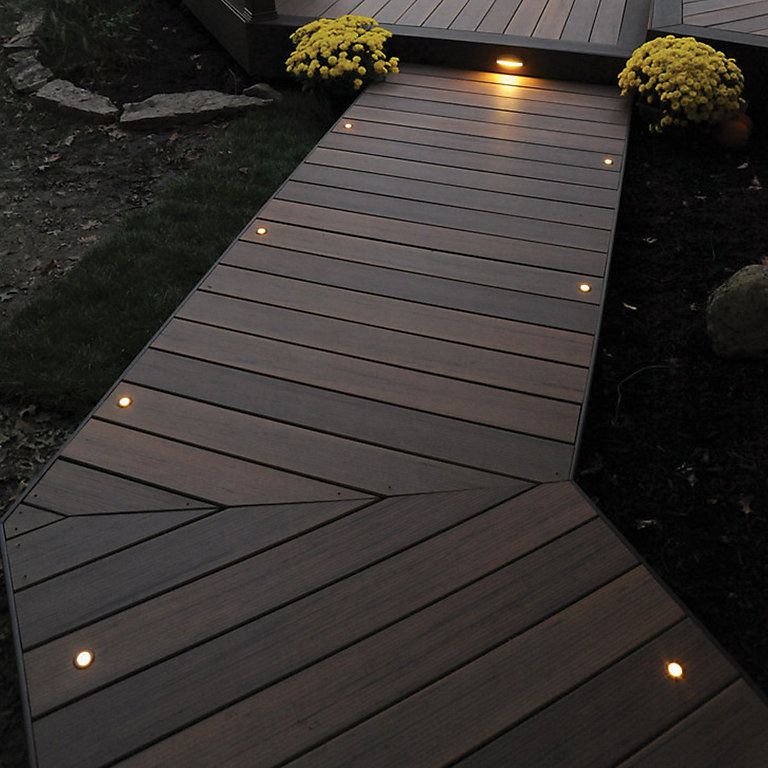

- Deck & Pathway Dots: Mark wooden deck edges and garden pathways. Low brightness avoids light pollution.
- Under-Bench & Furniture: Create floating effect under outdoor benches, reception counters, and planter boxes.
- Pool Coping: 1W DC 12/24V is safest for pool edge marking – low voltage, no shock risk.
For 3W Version (The Accent Light):
- Column & Pillar Up lighting: 10° beam throws sharp light 3-4 meters up main entrance columns and boundary walls.
- Tree & Landscape Uplighting: 15° beam perfectly lights 8-12ft palm trees and feature plants from ground level.

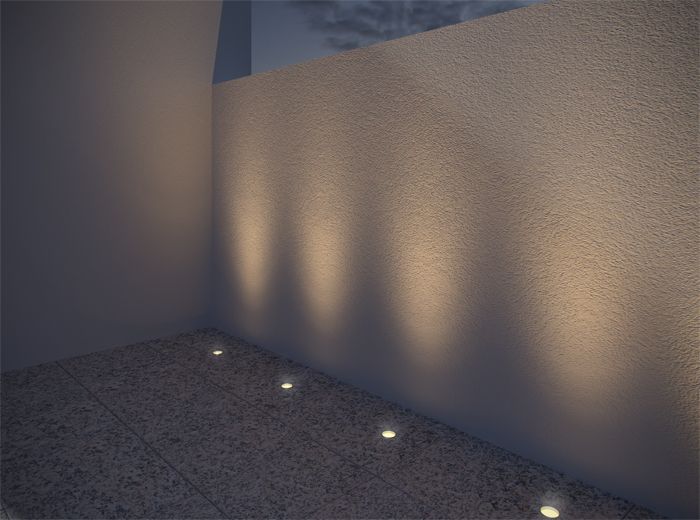

- Facade Grazing & Wall Wash: Use 15° / 24° close to textured stone or brick walls for dramatic grazing effect.

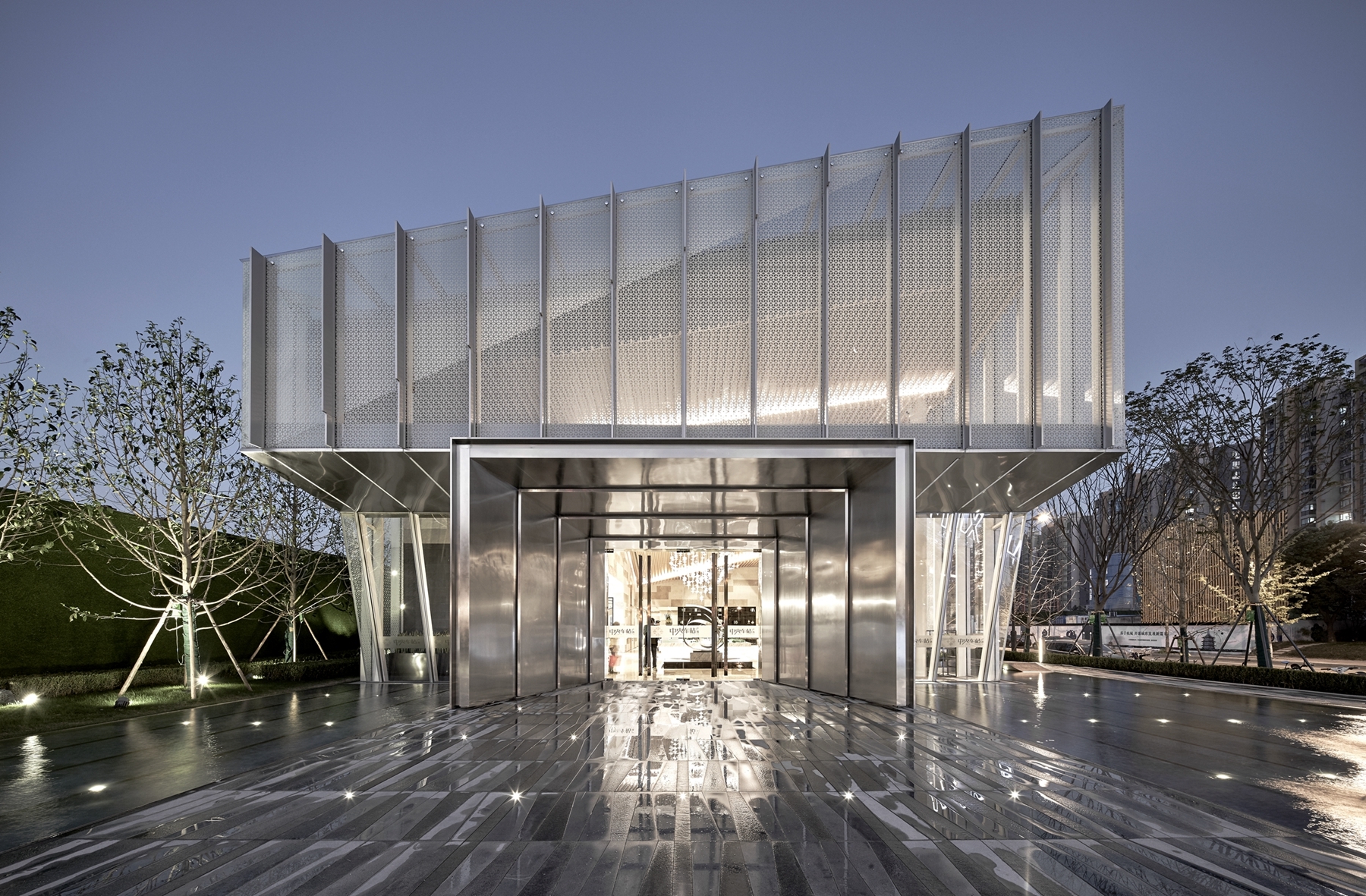

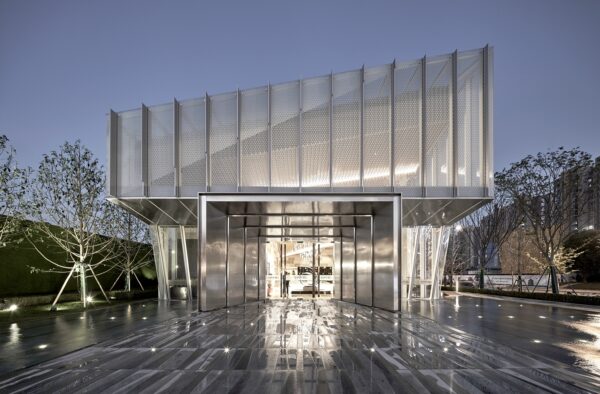

- Commercial & Hospitality: Hotels, cafes, showrooms use it to highlight signage, art pieces, and entrance features.
How to Choose:
- Client wants easy wiring, no driver? -> 220VAC
- Client has pool, garden, or kids area? -> 12/24V DC (Always recommend 24V for longer runs)
- Needs subtle dot? -> 1W
- Needs visible accent beam? -> 3W
What’s Included: Fixture & Mounting Sleeve

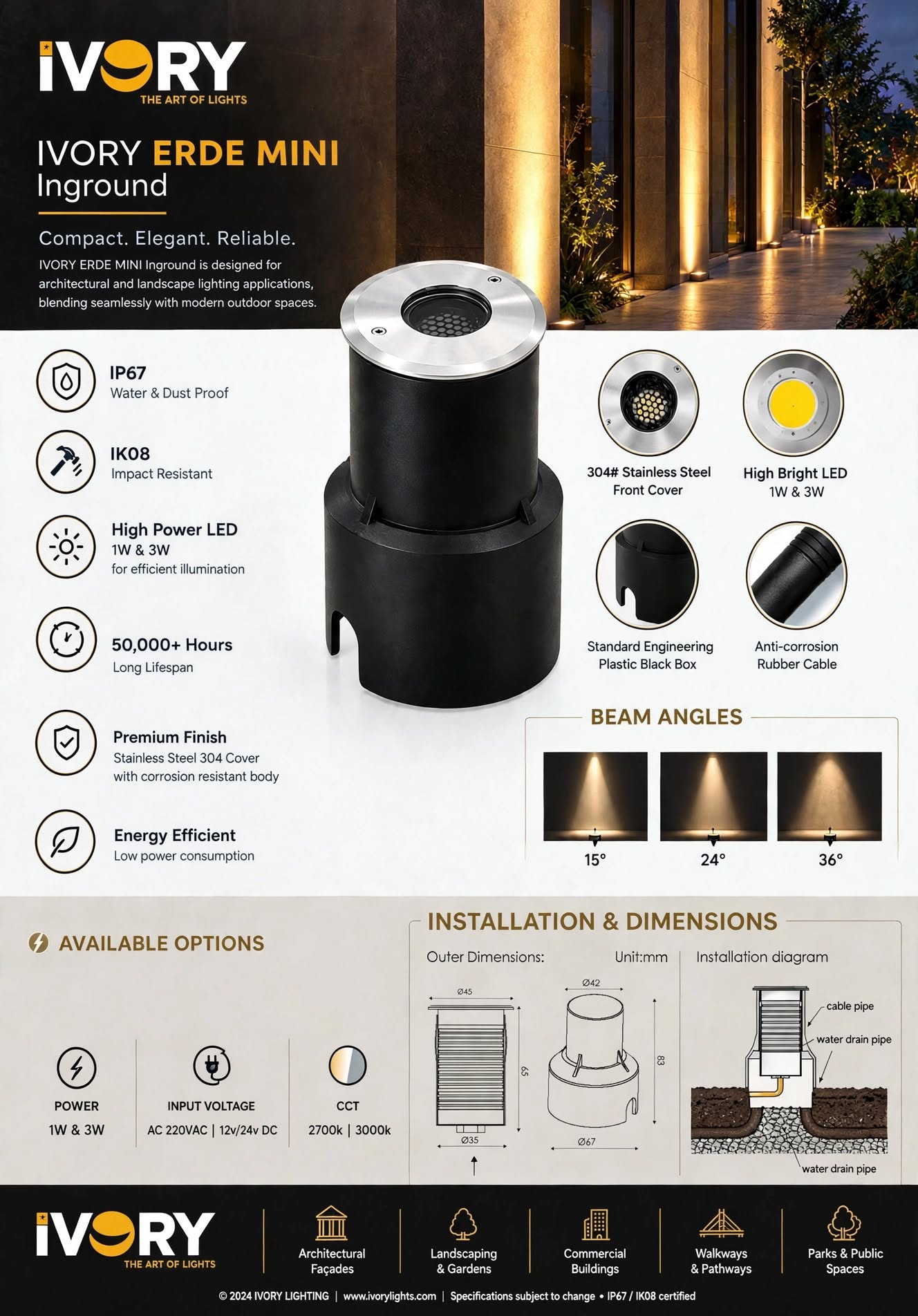

Outer Dimensions – Unit: mm

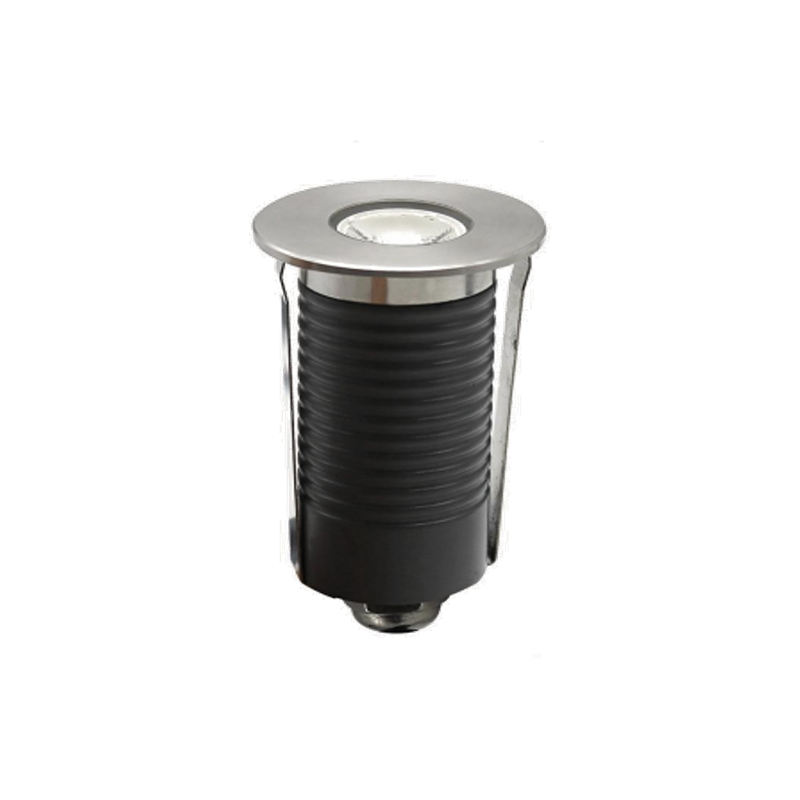

Fixture Body (Left Drawing):
- Top Bezel Diameter: Ø45mm
- Body Diameter: Ø35mm
- Total Height: 83mm (including bottom cable gland)
- This is the light itself that you see after installation – only the 45mm ring stays visible, rest is buried.
Mounting Sleeve / Outer Box (Right Drawing):
- Top Inner Diameter: Ø42mm (where the fixture clips in)
- Bottom Outer Diameter: Ø67mm
- Sleeve Height: 83mm
- This is the plastic/ABS housing you concrete in first. It has a side notch for cable exit.
Installation Cutout:
You need a Ø50-55mm core drill hole, 85-90mm deep. The sleeve goes in first, then the fixture push-fits with the 2 spring clips into the Ø42 opening.
