Description

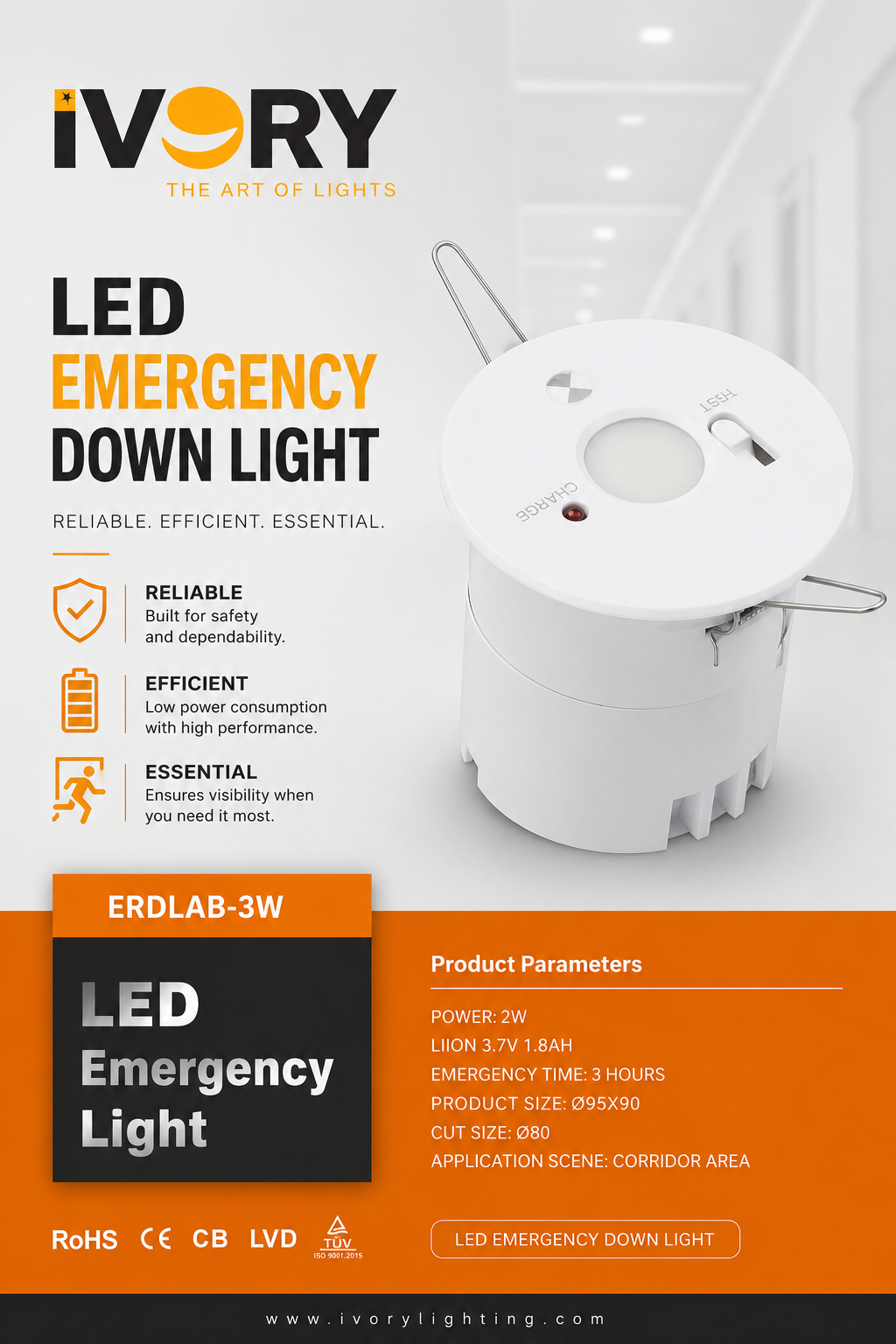

The IVORY LIGHTING Recessed LED Emergency Downlight is a compact, self-contained emergency luminaire engineered to provide reliable emergency illumination during mains power failure. Designed for seamless recessed ceiling installation, it integrates high-efficiency LED technology with an intelligent lithium-ion battery management system, making it suitable for modern commercial, residential, hospitality, healthcare, and institutional projects.
Operating in Non-Maintained Mode, the luminaire remains OFF during normal mains operation and automatically switches to emergency mode upon interruption of the AC supply, delivering 165 lumens of emergency illumination for a minimum of 120 minutes. This operating principle minimizes energy consumption while ensuring compliance with emergency lighting requirements for life safety applications.
The fixture incorporates a 3.7V 1800mAh Li-ion battery, automatic charging circuitry, overcharge protection, over-discharge protection, and a front-access test switch with LED charging indicator, enabling simplified maintenance and routine inspection.
Manufactured from durable, flame-resistant ABS housing, the luminaire offers excellent mechanical strength, corrosion resistance, and long operational life while maintaining a clean architectural appearance suitable for exposed ceiling installations.
Designed to operate on a universal AC 85–265V, 50/60Hz input supply, the emergency downlight provides dependable performance across a wide voltage range, making it suitable for diverse electrical infrastructures.
Performance Features
| Feature | Description |
|---|---|
| Emergency Operation | Automatically switches ON during mains power failure. |
| Normal Operation | Luminaire remains OFF during normal mains supply (Non-Maintained). |
| Battery Management | Intelligent charging system for optimum battery performance and life. |
| Overcharge Protection | Automatically stops charging when the battery reaches full capacity. |
| Over-discharge Protection | Prevents deep battery discharge to maximize battery lifespan. |

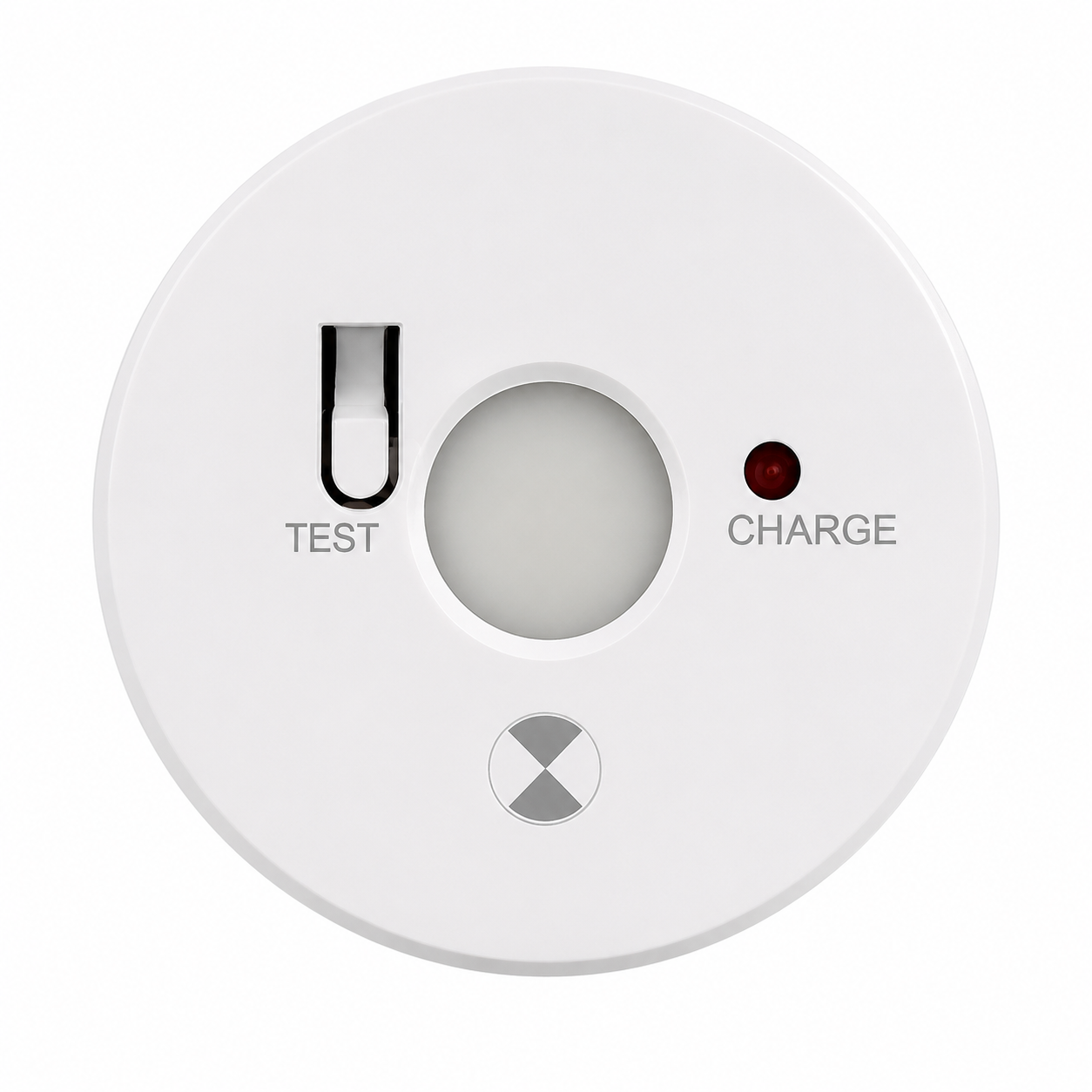

| Maintenance | Front-mounted test switch and LED charge indicator for easy inspection and routine testing. |
| Design | Compact recessed architectural design suitable for modern ceilings. |
| Application | Ideal for emergency escape routes, corridors, stairwells, lobbies, commercial and residential buildings. |
Key Technical Features
- Self-contained recessed LED emergency downlight
- Non-Maintained emergency operation
- Automatic activation upon mains power failure
- High-efficiency 2W LED emergency light source
- Emergency output: 165 lumens
- Minimum 120-minute emergency operation
- Integrated 3.7V 1800mAh Lithium-Ion battery
- Universal input voltage AC 85–265V, 50/60Hz
- Built-in charge status indicator
- Front-access emergency test switch
- Intelligent battery charging management
- Overcharge protection
- Over-discharge protection
- Compact recessed architectural design
- Durable ABS housing
- Natural White 4000K illumination
- IP30 protection rating
- 2-Year Manufacturer Warranty
Recommended Applications
The IVORY LIGHTING Recessed Emergency Downlight is recommended for life safety emergency lighting installations including:
- Commercial Office Buildings
- Banks & Fiancial Institutions
- Hotels & Hospitality Projects
- Shopping Malls
- Hospitals & Healthcare Facilities
- Educational Institutions
- Residential High-Rise Buildings
- Apartment Corridors
- Emergency Escape Routes
- Fire Exit Corridors
- Stairwells
- Lift Lobbies
- Basements
- Parking Structures
- Warehouses
- Retail Developments
- Public Buildings
